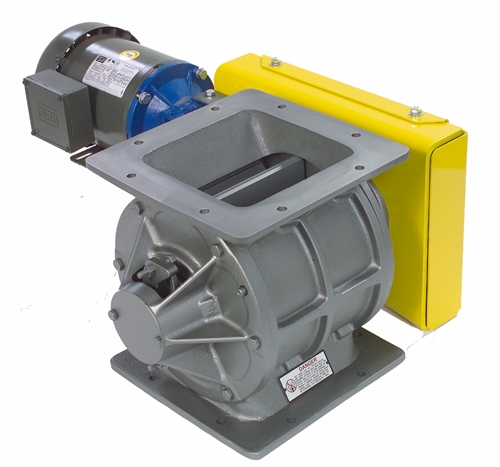

Constructed of cast iron or stainless steel, Meyer’s Universal Duty Valve features a maximum pressure differential of 7 psig and maximum temperature of 350F. The unit is available in 6 in and 14 in round or square flange designs, and has an eight vane open end rotor, full flow throat design, and outboard sealed bearings that never need lubrication. Available in round or square flange designs, this valve is suitable for baghouse, cyclone, and pneumatic conveying applications. The new housing’s design increases volumetric capacities while still providing the same flange to flange height and bolt pattern as the SD/HDX Series.
