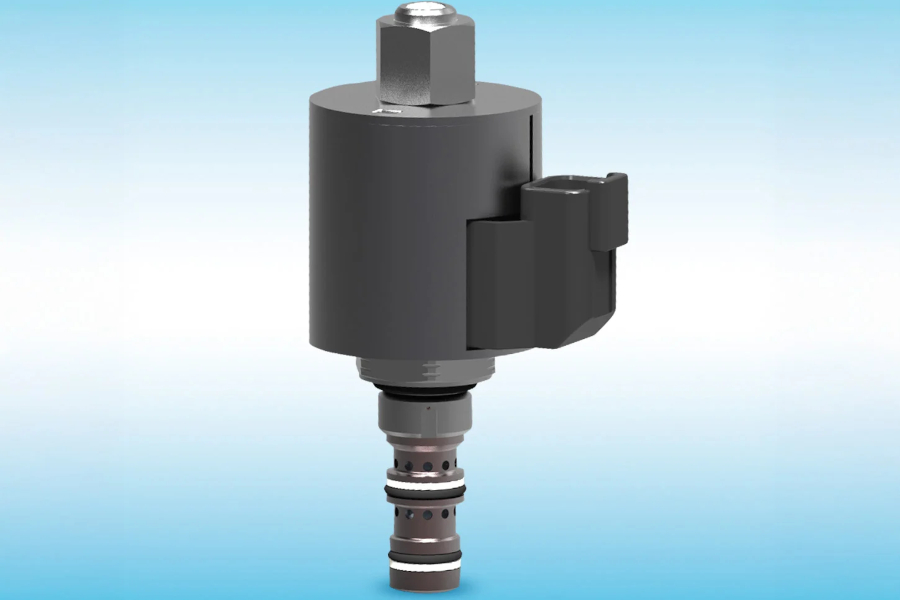

HydraForce’s HTS38-34 pressure control valve is in full production for OEMs in the agricultural and forestry industries.
The proportional valve can manage high-pressure capabilities and provide fast response times in industry-standard cavities. Some key benefits include its maximum inlet pressure of 350 bar (5,000 psi) and control pressure up to 152 bar (2200 psi). The unit also has a flow capacity of stable control from 0 to 19 lpm (5 gpm) with a maximum internal leakage of 95 ml/min (5.8 in³/min).
Its design provides rapid response and reliability, making it ideal for braking, clutching, and pilot control functions in agricultural equipment. A planned revision in 2026 will allow the HTS38-34 to be a drop-in replacement within -08 sizes and 3-way cavities, simplifying integration.
Courtesy of HydraForce.
