The benefits are extensive and highly sought after by end users. Valve World Americas had the pleasure of speaking with Rogier Hubregsen, Mechanical Design Engineer, and Michael O’Quinn, President of International Standard Valve (ISV) about the advantages of 3D valve design and new printing methods.

By KCI Editorial

From Conception to Realization

3D printing is seeping into every facet of industry, as it is particularly advantageous when designing standard and customized industrial parts and equipment. “3D printing is an emerging manufacturing method that has the potential of creating small patterns, molds, and difficult to machine specialty parts for valve designs,” commented Hubregsen.The most promising 3D printing method works similarly to traditional inkjet printers, but instead of printing a single layer it builds a part layer by layer, from the bottom upward. Repeatedly printing over the same area using a method referred to as Fused Depositional Modeling (FDM), a design is created over several hours.
Using a given 3D CAD drawing, the printer deposits layers of material and fuses them together with bonding agent to create the part. After the part is printed its sintered in an oven to fuse the metal powder together. Once the parts are created and the valve is assembled, the valve is subject to a series of tests to assure quality and all stipulations by the customer are correct.

Steps of 3D Valve Design

The first step of designing any valve is assessing need. A request is made to create a new valve, with specific requirements as indicated by the purchaser. The valve manufacturer adheres to the specifics of the order, determines the best course of action, and the process(es) needed to fulfill it. In this stage, a 3D CAD drawing of the valve is created. The drawing, or design file is then uploaded to the related software program via computer.
The next step is Finite Element Analysis (FEA), which uses mathematical models to quantify real world effects on the valve. The simulations are conducted using specialized software that helps determine the source of potential problems, such as area of fault, weakness, or tension.

“The 3D soft-ware system is similar to creating a virtual environment. You plug in the perimeters of the valve, including materials, wall thicknesses and so forth, then conducts real life analysis and strength to verify it meets all given requirements,” said O’Quinn.Following analysis, building begins as the 3D printer creates the product or part layer by layer over a series of hours. The time frame to print is determined based on size, specifications, and the like. Once printing is completed, the printed piece is removed and inspected. Further inspections can include dimensional inspections, various non-destructive examinations, performance testing and/or pressure testing depending on the component.

Bountiful Benefits

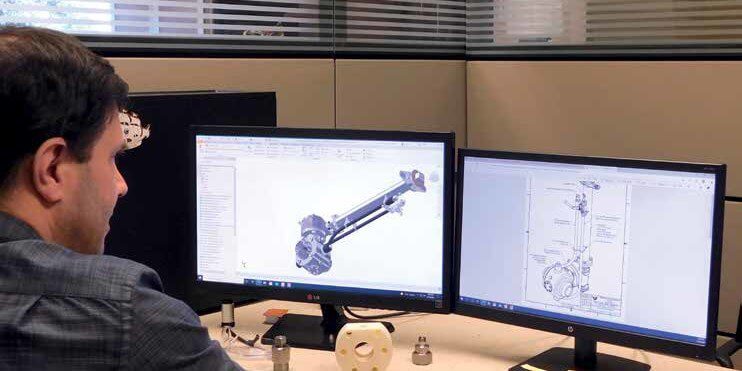

3D image

The benefits of 3D designing valves are obvious; increasing production efficiencies, and reducing overall wait time for customers to make, create, and receive their valves is very important to the market. The less time spent waiting for parts, the more up time the process or application will endure. Less time wasted directly translates to profit increase for companies, as valves are often critical components in industry. For example, a refinery in need of an isolation valve on a storage tank responsible for maintaining the separation of different oil products is imperative to avoid the cross contamination of fuels and maintain high quality product. This rapid improvement of prototypes, and the ease of access for customers, are huge benefits of the 3D valve design.

Elimination of material waste is another added benefit of 3D design. With computer-aided design, printing is precise and done layer by layer. This process further permits the manufacturing of unique and highly specified components. While 3D metal printing is currently applicable on smaller valve parts, traditional manufacturing methods are often wasteful and consume large amounts of raw materials and energy. Instead of foundering and machining a valve component from a large piece of material, 3D printing, in comparison, can create the component with considerably less waste. As much of the design is created on the computer, improvements are easier to implement, and simulations are made easier.

“In some cases, 3D design imagery helps customers identify what they are requesting. If there is any type of customization, it also gives them a chance to review and improve upon it prior to its manufacture. That eliminates any guesswork for EPCs and engineering companies working on, for example, complex piping systems. 3D design is more detailed and flexible, as opposed to classic blue line drawings,” said Hubregsen.

3d image“Those who build chemical plants and refineries utilize many different piping systems, running in several directions. With 3D design, engineers can walk through and inspect each valve and related piping component as if it was a virtual 3D environment. This often translates to earlier design approvals,” continued O’Quinn. 3D design can also streamline the manufacturing process, leading to greater efficiency gains.

3D technology ultimately increases speed and design flexibility, and reduces the risk and the amount of waste within additive manufacturing. No material limitations, alongside complete customization, higher yields, and lower costs are all extremely advantageous to 3D design and printing. This technology also offers huge benefit to those looking to create a prototype quickly and accurately.

As valve manufacturers continue to optimize 3D valve design and printing processes, end users will be offered more options than ever before. Real economic benefit will arrive as 3D printing becomes intrinsic to all facets of the manufacturing industry. In theory, the only limitation with 3D design is your imagination, and manufacturers like ISV are well equipped to manage the requests of existing, and future valve users.
