Fundamentals of Valve Design

Valves, though seldom in the limelight, play an indispensable role in our daily lives and the operation of high-stakes industries. From the simple act of drawing water from a tap to the complex processes in oil refineries, these devices are fundamental for maintaining safety, efficiency, and system integrity. As technologies advance and operational demands intensify, the development of valve technologies has become more crucial than ever.

By Mike Dunn, Co-Owner – JS Machine and Valve Inc

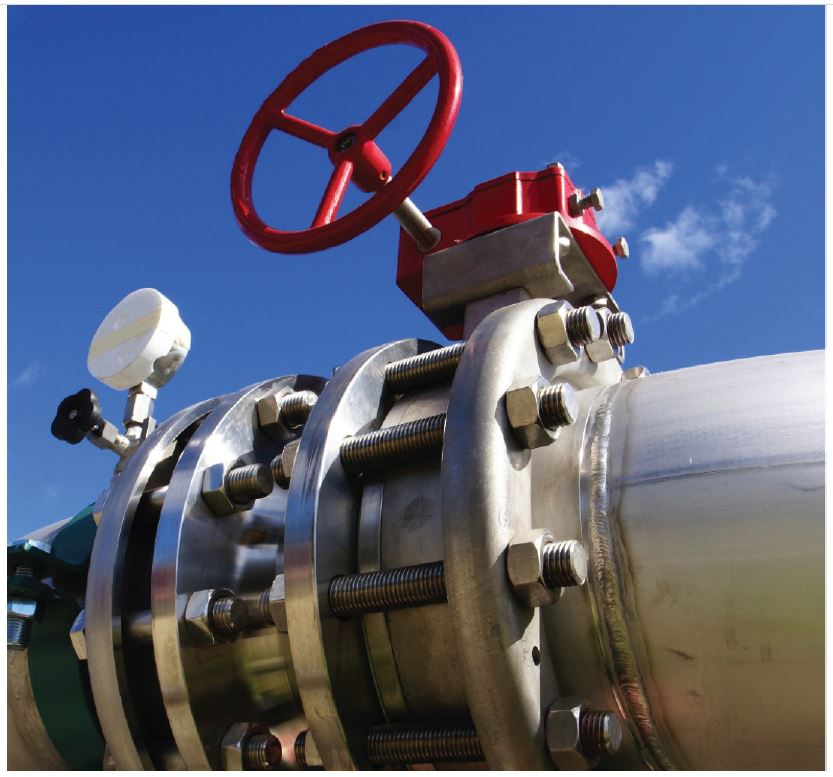

Understanding Valve Design

Designing a valve is an intricate dance of engineering that demands precision in choosing the right materials, adhering to rigorous standards, and ensuring resilience under diverse operational challenges. A valve’s construction typically consists of several key components:

  • Valve Body and Bonnet: These components constitute the primary shell pressure boundary for the valve’s operational mechanisms. Engineered to endure substantial stress and chemical exposure, their specifications, including minimum wall thickness, are governed by industry standards such as ASME B16.34, ensuring reliability under a range of pressures and conditions.
  • Trim: The trim of a valve can vary depending on its type, but it typically includes all internal components such as the disc, seat, stem, and sleeves, which directly interact with the process medium. The design and material selection for the trim are critical for the valve’s performance, influencing factors like flow control precision and maintenance frequency.
  • Actuator: The actuator is the mechanism that operates the valve, which can be manual, pneumatic, hydraulic, or electric. The choice of actuator type affects the valve’s responsiveness and suitability for specific applications, from simple manual operations in residential plumbing to automated systems in large-scale industrial plants.

Shell Material Options

Casting versus Forgings

Selecting the right materials is crucial in valve manufacturing, as it directly impacts the valve’s durability, corrosion resistance, and compatibility with various fluids. Two primary methods of producing these materials are casting and forging, each offering distinct advantages and influencing the performance attributes of the finished valve.

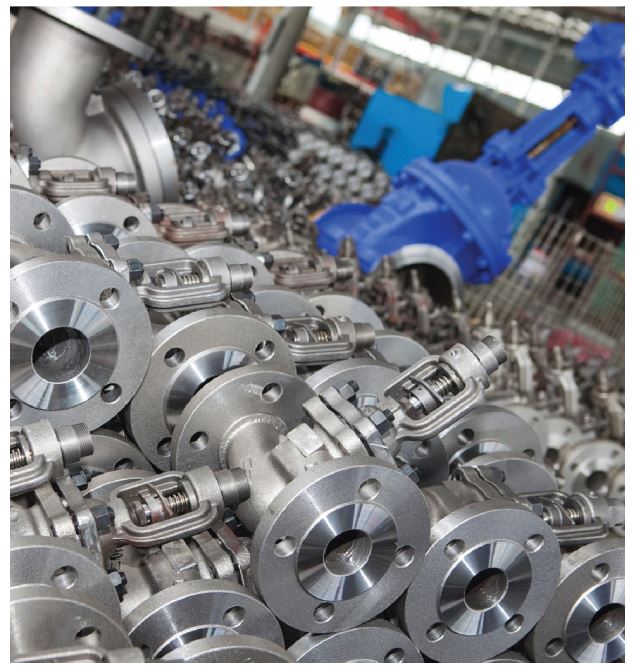

Casting Process

Casting involves pouring molten metal into a mold where it solidifies into the desired shape. This process is highly versatile and can produce complex shapes and sizes, making it suitable for a wide range of valve types. Here are some key aspects of casting:

  • Material Variety: A wide range of metals and alloys can be cast, including stainless steel, carbon steel, and specialty alloys, which can be selected based on the specific corrosion resistance and strength needed.
  • Versatility in Design: Casting allows for intricate geometries and large valve sizes that might be challenging or cost-prohibitive to achieve through forging.
  • Cost-Effectiveness: Generally, casting has lower tooling costs compared to forging, making it economically favorable for producing large quantities of valves.

Cast valves do have some downsides such as potential for internal porosity, which can lead to leaks if not properly controlled, and generally lower mechanical properties compared to forged valves due to the less uniform microstructure.

Forging Process

Forging involves deforming metal into the desired shape under pressure, usually at high temperatures. This process tends to produce parts that are stronger and more durable due to the continuous metal grain flow. Here are some advantages of forging:

  • Enhanced Durability: Forging aligns the metal’s grain with the shape of the part, increasing its overall strength and fatigue resistance.
  • Superior Reliability: Forged valves exhibit greater integrity and are less likely to contain defects or porosity, making them ideal for high-pressure and high-temperature applications.
  • Improved Corrosion Resistance: The dense structure obtained from forging offers better corrosion resistance, an essential factor for valves used in harsh environments.

Despite its strengths, forging can be more expensive due to higher material and production costs, especially for complex shapes or smaller production runs.

The choice between casting and forging often comes down to the specific application requirements.

Casting is preferred when complexity, size, or cost is a driving factor, especially for valves where high strength is not the primary requirement. Forging is chosen for applications where operational conditions demand high strength and durability.

Ultimately, the selection of materials and the manufacturing process for valves must align with the operational demands they will face. This ensures not only the efficiency and safety of the systems in which they are used but also affects the lifecycle and maintenance schedule of the valve itself.

Common Material Types

Selecting the right materials is pivotal in valve manufacturing, impacting the durability, corrosion resistance, and fluid compatibility of the valve. Common materials include:

Carbon Steel (WCB and A105):

Widely used for general service applications, these materials provide a good balance of strength and cost-effectiveness. They are predominantly employed in environments where temperatures are below 800°F and corrosion is not a primary concern.

Austenitic Stainless Steels:

304 Stainless Steel is noted for its excellent corrosion resistance, making it suitable for a wide range of environments.

316 Stainless Steel includes molybdenum, enhancing its resistance to chloride environments and making it ideal for marine and pharmaceutical sectors.

309 Stainless Steel provides superior resistance to oxidation and is capable of maintaining strength at higher temperatures.

347 Stainless Steel is stabilized with niobium, making it suitable for high temperature applications in sectors like aerospace and power generation, where it prevents chromium carbide formation.

Low Alloy Steels:

1 1/4 Chrome (P11 and WC1): This alloy, containing approximately 1.25% chromium, offers improved strength and temperature resistance over standard carbon steels. It is widely used in power plants and other high-temperature environments. The addition of chromium enhances its oxidation resistance, making it suitable for medium-temperature applications.

2 1/4 Chrome (P22 and WC6): With a slightly higher chromium content, this alloy provides even better resistance to heat and corrosion. It is typically used in the oil, gas, and chemical industries, where it handles higher pressure and temperature conditions more effectively than 1 1/4 Chrome. Its enhanced properties make it ideal for steam-service applications and high-pressure boilers.

5 Chrome (P5 and C5): Containing about 5% chromium, this alloy offers excellent resistance to heat and a good tensile strength, making it suitable for petrochemical industries and environments involving high-temperature and high-pressure. It is particularly valuable in applications where thermal stability is a critical requirement.

9 Chrome (C12, P9): Highly regarded for its ability to withstand extreme temperatures and corrosive environments, 9 Chrome is often used in fossil fuel power plants and the petroleum industry. Its high chromium content provides excellent oxidation resistance, and it is well-suited for high-temperature applications in corrosive environments.

9 Chrome with Vanadium (P91 and C12A): This advanced alloy incorporates vanadium, enhancing its strength and heat resistance further. It is a top choice for supercritical and ultra-supercritical steam applications, as well as in modern high-efficiency power plants. The addition of vanadium improves the material’s mechanical properties at high temperatures, making it ideal for the most demanding applications.

Exploring Trim Materials

Trim materials are selected based on their ability to withstand wear, corrosion, erosion, and their compatibility with the fluid medium. While API trim codes, such as those specified in API 600, standardize material selection for gate, globe, and check valves, it is important to note that other valve types may follow different trim code designations or lack standardization altogether. These alternative codes cater to specific requirements unique to each valve type, often including soft goods.

  • Trim 5 (Stellite Hardfaced): This is also known as Full Hard Faced. Known for its robust wear resistance, this trim is used in environments with high temperatures and abrasive conditions, such as in power generation and oil processing.
  • Trim 8 (410 and Hard-faced): This trim configuration uses 410 stainless steel for the stem and disc sealing surface, with seat rings hard-faced with Stellite, balancing durability and cost-effectiveness for oil and gas applications.
  • Trim 12 (316 and Hard-faced): Featuring a 316 stainless steel stem and disc sealing surface, with Stellite hard-faced seats, this trim is designed for medium-pressure, corrosive environments where longevity and resistance to wear are required.

Valve Types and Their Unique Designs

While exploring the nuances of valve design and technology, it is beneficial to explore the specific design features that make each valve type uniquely suited to its tasks. This section will briefly touch on some of the key design characteristics of a few different valves, highlighting how these features contribute to their functionality and application in the industry.

  • Gate valves stand out as the pillar of the valve industry, prized for their ability to provide a clear and unobstructed path for fluid flow when open, resulting in minimal pressure loss. They are predominantly used where flow needs to be completely shut off (isolation).
  • Globe valves are designed for precision. Unlike gate valves, they regulate flow through a movable disk-type arbitrator and a stationary ring seat in a generally spherical body. Globe valves are ideal for throttling service, where flow needs to be adjusted variably. Additionally, the geometry of the disc can be adjusted to achieve the desired flow characteristics.
  • Check valves are the silent guardians in piping systems, allowing fluids to flow in one direction and preventing backflow which can lead to system damage. Their operation is automatic, driven by the flow itself, showcasing their simplicity and effectiveness in one-way flow systems.
  • Ball valves offer a glimpse into the innovation within valve design. Ball valves are the most common type of quarter-turn valve, offering faster operation and cycling times compared to the previously discussed multi-turn valves. They are favored for their quick and efficient performance. Notably, features such as single piston effect (SPE) seats, which provide internal cavity pressure relief, and double block and bleed functionality, enhance safety and reliability.
  • Butterfly valves represent a diverse product category, ranging from standard concentric designs to high-performance and triple-offset models. Standard butterfly valves are perfect for low-pressure, low-temperature applications where quick and efficient flow control is needed. High-performance variants step up the game, suitable for higher pressure and temperature conditions with their enhanced sealing capabilities. The triple-offset butterfly valves, the pinnacle of this type’s design, boast a metal seat and a unique offset stem design, allowing for a tight shutoff, making them ideal for more demanding industrial applications.
  • Plug valves add to the landscape of intricate valve technologies. The traditional lubricated plug valve requires regular maintenance but provides reliable operation in high-pressure environments. On the other hand, non-lubricated plug valves, using elastomeric body liners or sleeves, offer reduced maintenance but are restricted to temperature and pressure restrictions based on the elastomer being used. The lift and turn plug valves represent an evolution in the design, where the plug can be lifted slightly before turning, significantly reducing wear and tear on the valve’s sealing surface, hence extending the valve’s life.

From the basic gate, globe, and check valves that embody simplicity and efficiency, to the more complex ball, butterfly, and plug valves with their advanced engineering, the world of industrial valves is as diverse as it is crucial to modern industry. Each type of valve brings its own set of advantages and specific uses, playing an essential role in the safe and efficient management of fluid dynamics across various sectors.

Other Considerations When Selecting the Proper Valve Design

Selecting the right valve is not just about understanding its basic function. It involves a deeper understanding of several critical design characteristics that can significantly influence a valve’s performance and suitability for specific applications. Let’s explore some key factors that every engineer and technician should consider when choosing valves to ensure optimal functionality and safety in their systems.

  • Size and Pressure Rating: Based on the system’s flow needs and pressure.
  • Temperature Limits: Important to consider since high temperatures can degrade materials.
  • Leakage Rates: Essential for ensuring safety and efficiency, particularly in environments handling hazardous substances.
  • Flow Coef­ficients (Cv): Indicates how freely a fluid can pass through the valve.
  • Pressure Drops: Critical for maintaining expected pressure differences across the valve.

Each of these plays a pivotal role in the efficient and safe operation of a system.

Technological Innovations in Valve Design

The valve industry continues to evolve with significant technological advancements that enhance functionality and operational efficiency:

  • Smart Valves: Equipped with sensors and data analytics, these valves offer real-time insights into performance and predictive maintenance capabilities, helping to pre-emptively address issues before they escalate.
  • Material Advances: New developments in metallurgical science have led to the creation of alloys and polymers that offer superior performance by resisting extreme conditions and reducing wear. This extends the lifespan of valves and reduces the frequency of replacements.
  • 3D Printing: This technology revolutionizes valve manufacturing by enabling the rapid prototyping and production of complex valve geometries, significantly reducing costs and lead times.
  • Magnetic Drive Operators: A novel innovation in valve operation, magnetic drive operators, utilize engineered magnets to operate valves, ensuring that no valve components are exposed to the atmosphere. This is especially crucial in applications involving hazardous or toxic fluids, where emissions control is paramount.

Conclusion

Valves may often be overlooked, but their importance cannot be overstated. They are fundamental in managing fluid dynamics across various sectors, ensuring safe and efficient operations. The ongoing innovations in valve technology not only respond to current industrial demands but also anticipate future challenges, making valves not merely functional devices but crucial components in advancing industrial capabilities and environmental safety.

This exploration into valve types, materials, and innovations highlights the complex yet critical nature of these devices in both every day and industrial applications, underscoring the necessity of choosing the right valve for the right task and the impact of technological advancements on this essential field.
